Wednesday 27 February 2008

How Microsoft caused apache & php_mysql.dll to fail...using VISTA (dwmApi.dll)

The Background

Last week I discovered I had quite a few viruses etc.. on my laptop. So I needed to reformat the hard-drive and re-install WindowsXP before I started my new job.

Now before I did all this, I made sure I had a complete back-up of everything off the machine. NB: this is my main development machine... it is a very nice HP laptop.

Before I did this, I had a very nice fully working development environment, i.e.: Cygwin, IDEs, Java VM (1.4/1.5/1.6), mySQL, all my tools, compilers, disassemblers, apache 2, php 5, remote access etc...

So WHY.... did PHP5 refuse to work when I re-installed it today....?!!!

Well, sit back and I will tell you a story of detective work and a serious mistake that seems to have got through to cause me and others, a huge problem.

The Story

I needed to re-install a php environment today, so I could test the environment I am recommending to my current client.

So I copied everything back on my machine, ran a quick command line PHP test (which worked) and tried to start apache.... and it FAILED... with:
PHP Warning: PHP Startup: Unable to load dynamic library 'C:\\_dev\\php5\\ext\\php_mysql.dll'

Considering it had worked on the command line, I thought this was a little strange. But config issues are normal, so... it needed a little work. I am quite used to this, having done it far too many time over too many years.

Over the next FOUR hours... I re-installed apache twice, PHP twice, rebooted a few times and re-ran the configuration at least four times.

I still had php alone working fine, but php through apache failing... with a message that simply made no sense.

So now I started to get frustrated and went hunting on google..

The Chase

After a while, I found a few forum threads that talked about using Dependency Walker to see what php_mysql.dll actually needed, and why it should be failing.. So I downloaded the software and checked it out.

Dependency Walker immediately reported a failure in the dependencies. DwmAPI.dll.

Ok, that seems a little odd...

So, off I went back to google to see what I could find out.

It turns out that DwmAPI.dll is a Desktop Windows Manager API... and after a load more research I found out... for Windows VISTA...!!!!

Now I was pissed.

The Fury

Some idiot had compiled a dependency to the wrong operating system into one of my tools.

At least I now had a culprit... all I had to do was track down the criminal.

AND GUESS WHAT.... it was Internet Explorer 7.

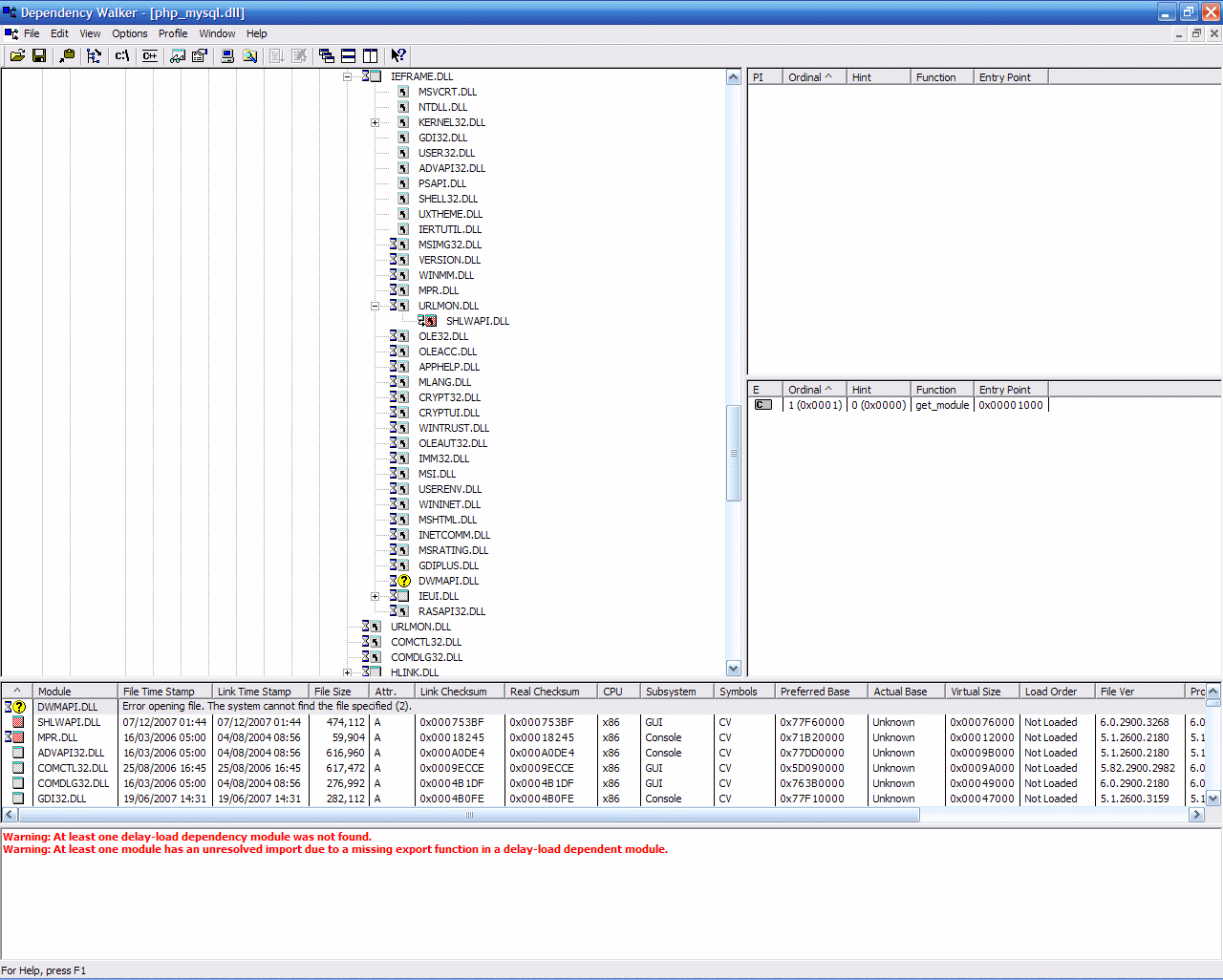

Look at the tree... DwmAPI.dll is a dependency of IEFRAME.dll, which I recently gained, when I decided to bite the bullet and install IE7.

What a £$%&ing mistake that was...

So now I was even more pissed off.

I had spent hours debugging to find an error that should never have existed from the people who created the operating system I depended on.

At least I should be able to fix it.

The Fix

Well, on that point I can at least put one happy note forward.

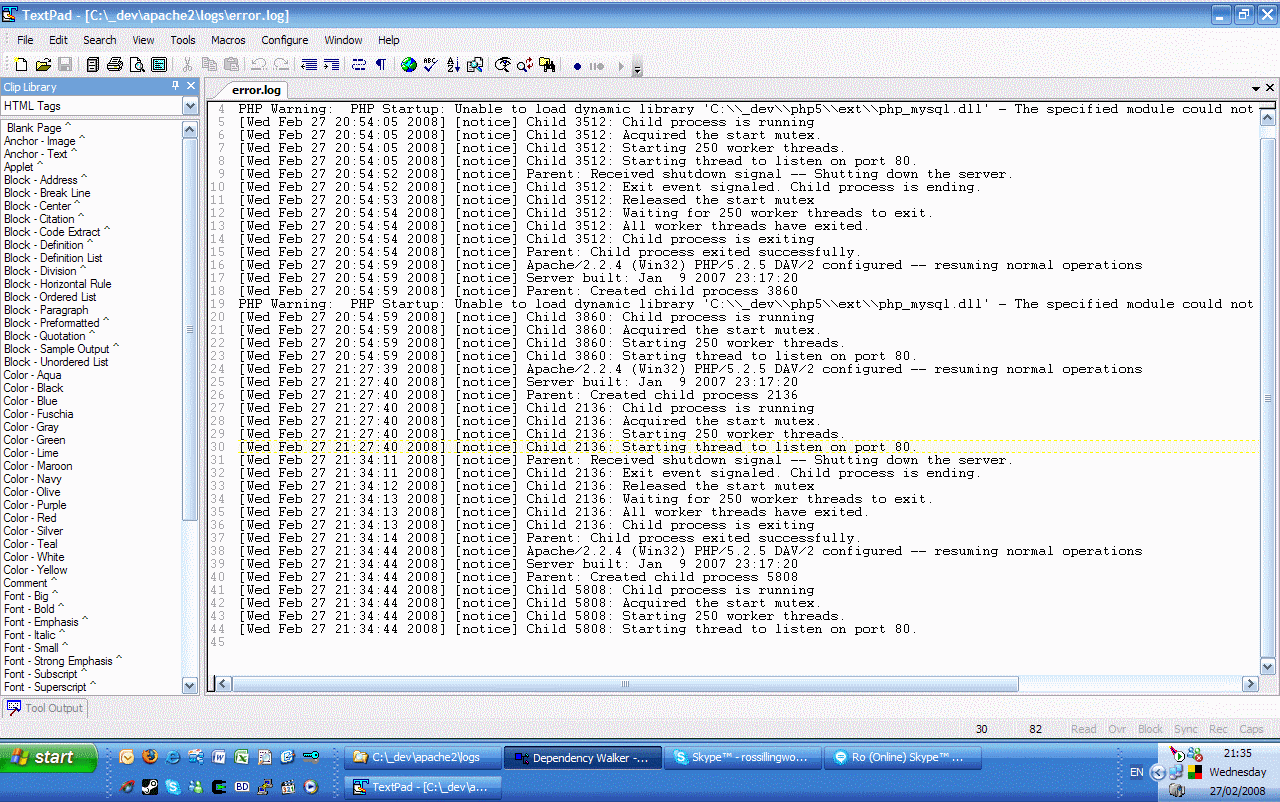

IE7 uninstalled in 5 minutes... I rebooted... I started apache... I checked the error log files and..... IT WORKED...!

And just to prove a point...
Here is the Dependency Walker result after I had un-installed IE7.

And the moral of this story.....

IE7, PHP, Apache and the word NOT features quite heavily.

... you work it out. :->

But... this has been enough of a serious headache to make me think about ditching windows for a *nix machine. Either OSx or Linux.

Considering I have been a windows(less than fanatical) user for quite a while, mainly due to client pressure... it is ironic that the systems I use to develop and now being pushed off machines that keep me using their software...

To Microsoft:
You have created a bug that makes the primary web development environment crash. And you have done it with your browser.. something the same web developers really need to install for testing.
Were I a more paranoid type... I would be suggesting this was deliberate.
